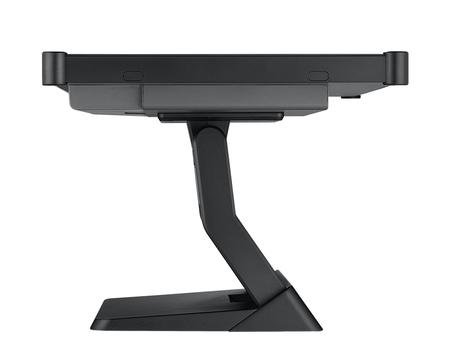

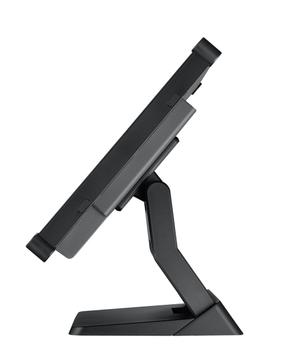

AG NEOVO TFT 17' TX-1702 Touch Screen Monitor (New model, ETA Q34/Q4)

Touch Screen Displays | TX-1702

• Based on projected capacitive (PCAP) touch screen technology, AG Neovo touch screen monitors can register up to 10 simultaneous touch points with fast, accurate, and extremely sensitive touch response. These seamless touch senses are identical to those used in smartphones and tablets.
• Multi-Touch capability is optimized to work with various operating systems, providing compatibility with Windows, Linux, macOS, and certain Android versions. This enables more choice to the operating system you use.
• The TX-Series front IP65 touch screen monitors are designed to protect against dust and liquid spills. This makes these durable touch monitors ideal for the industrial workplace or the demanding, high-use, and high-traffic public locations.
• Replacing AG Neovo touch screens never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.

• Panel
• Panel Type: LED-Backlit TFT LCD (TN Technology)
• Panel Size: 17.0"
• Max. Resolution: SXGA 1280 x 1024
• Pixel Pitch: 0.264 mm
• Brightness: 250 cd/m²
• Contrast Ratio: 1000:1
• Viewing Angle (H/V): 170°/160°
• Display Colour: 16.7M
• Response Time: 3 ms
• Surface Treatment: Anti-Glare Treatment (Haze 25%),3H Hard Coating
• Frequency
• Frequency (H): 31 kHz-80 kHz
• Frequency (V): 50 Hz-75 Hz
• Signal Input
• DisplayPort: x 1
• HDMI: 1.4 X 1
• VGA: 15-Pin D-Sub x 1
• External Control
• RJ11: Yes
• Touch Screen
• Technology: Projective Capacitive
• Positional Accuracy: ± 2.0 mm
• Panel Interface: USB (Type-B)
• Multi-touch Plug & Play: 10-point touch Windows® 7、8、10
• Single Touch Support by Driver: Windows VISTA/XP/2000/CE/XP Embedded、Mac OS 10.10-10.14
• Multi-touch Support by Driver: 10-point touch for Linux、Android 2.3-4.x
• Power
• Power Requirements: DC 12V, 2.5A
• On Mode: 10W (On)
• Standby Mode: < 0.8W
• Off Mode: < 0.3W
• Glass
• Thickness: 3.1 mm (0.12")
• Transmission Rate: > 85%
• Hardness: > 7H
• Operating Conditions
• Temperature: 0°C-40°C (32°F-104°F)
• Humidity: 20%-80% (non-condensing)
• Mounting
• VESA FPMPMI: Yes (100 x 100 mm)
• Stand
• Tilt: -5° to 90°
• Security
• Kensington Security Slot: Yes
• Dimensions
• Product with Base (W x H x D): 380.0 x 343.4 x 214.2 mm (15.0" x 13.5" x 8.4")
• Product w/o Base (W x H x D): 380.0 x 318.0 x 49.5 mm (15.0" x 12.5" x 2.0")
• Packaging (W x H x D): 450.0 x 418.0 x 277.0 mm (17.7" x 16.5" x 10.9")
• Weight
• Product w/o Base: 3.9 kg (8.6 lb)
• Product with Base: 5.8 kg (12.8 lb)
• Packaging: 8.0 kg (17.6 lb)
• Regulation Approval
• Certifications & Compliance: CE, LVD, WEEE, RoHS, REACH, EAC
• Accessories Supplied: Power Adaptor, Power Cord, VGA Cable, HDMI Cable, USB Cable, Quick Start Guide, Warranty Card
• Optional Accessories
• Wall Mount (Landscape only): WMK-01, WMK-03, PMK-01
• Power
• Power Supply: External
• Storage Conditions
• Temperature: -20°C-60°C (-4°F-140°F)
• Humidity: 10%-90% (non-condensing)
